UPCERA
-

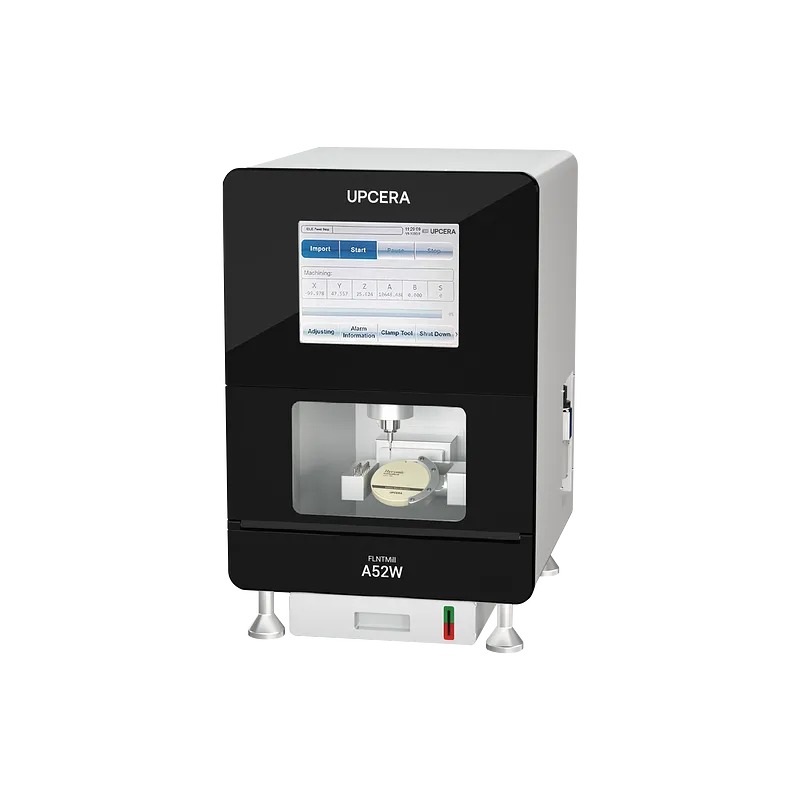

FLNTMill A52W
· Build-in solid water tank
· Reliable capacitive touch screen,user-friendly Ul
· Applicable with 3 units of Pre-mill or 4 units of glass ceramic block
· Stable and powerful spindle ensures high precision results
· Protection module against power failure and low air pressure
· 24-hour non-stop machining
Materials
Device Parameters
Dimensions
55*49*75cm
Weight
110kg
Voltage
220V 50Hz ; 110V60Hz (optional)
Power
1.0kw
Compatible Compressed Air
0.5-0.8 MPa
Spindle Speed
80, 000rpm
Tilt Angle
A axis: ±360°, B axis: ±35°
Precision
<0.01mm
Number of Bur
12
Cooling Type
Water cooling (Built-in water tank)
Materials
Glass ceramic, premill, PEEK, PMMA
Wax (Φ98.5mm, thickness of 10mm-30mm)
Milling Speed
Pre-Milled abutment (40 minutes/pc), Glass-ceramic (10~30 minutes/pc),
PEEK, PMMA (10 minutes/pc)
Wax (3 minutes/pc), Framework (Wax / PEEK, 45/150 minutes/pc)
Application
Crown, inlay, onlay, bridge, splints, BPS, framework pre-milled abutment, abutment on Ti base one-piece abutment
